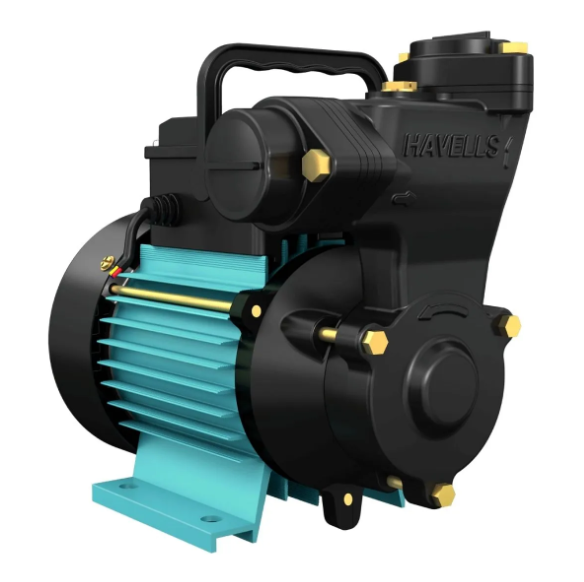

HAVELLS SAGAR1 0.75 kW (1.0 HP)

Technical Specifications

• Manufactured By Havells

   India Ltd.

• Country Of Origin India

• Net Contents

  1 N Pump Set, 1 N Instruction Manual, 1 N Warranty Card, 1 N Suction Strainer

• Applications Apartments, bungalows, farmhouses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation

• High Suction with Self Priming up

   to 7.5 m

• Low Power Consumption Yes

• Operating Water Temperature up

   to 50 °C

• Pipe Size

  25 mm x 25 mm

• Suitable For Single

   Phase supply

• Cable Length and Size

  0.3 m & 1.0 sq. mm

• Gross Weight

  8 kg

• Packaging Dimensions

  280 mm x 185 mm x 245 mm

• Power Supply Cable Yes

• Direction of Rotating clockwise

   when viewed from fan cover side

• Dynamically Balanced Rotor Yes

• Motor Body High

   quality extruded aluminum

• Motor Speed

  2850 Revolution per minute

• Motor Stator Low

   watt loss stamping

• Winding Type Copper

   winding

• Power

  1.0 HP

• Rated Frequency

  50 Hz

• Rated Power Input

  0.75 kW

• Voltage Operating Range

  180 V to 260 V

• Pump Casing Cast

   iron

• Impeller Forged brass

• Shaft

  C45 (EN8)
