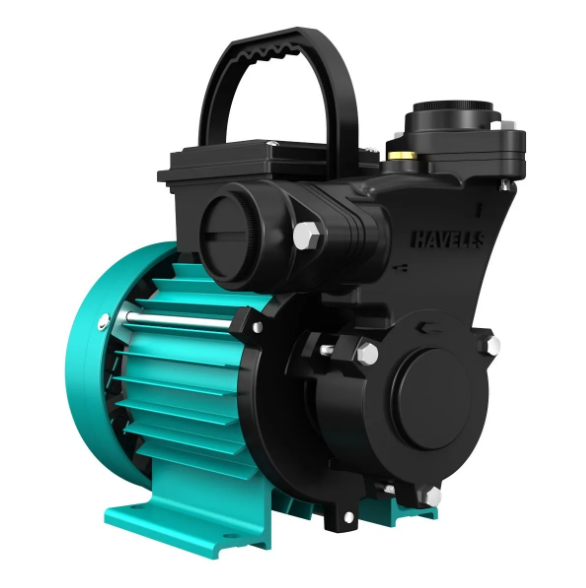

HAVELLS ZINNIA-2 Plus 0.37 kW (0.5 HP)

Technical Specifications

• Manufactured By Havells

   India Ltd.

• Country Of Origin India

• Net Contents

  1 N Pump set, 1 N Instruction Manual, 1 N Warranty Card, 1 N Suction Strainer.

• Applications Apartments, Bungalows, Farmhouses, Building Construction, Gardening, Fountains, Overhead Storage Tanks, Pressure Booster Systems, Hotels, Hospitals & Industrial Water Circulation

• Maximum Head

  21 m

• Maximum Working Pressure

  2.1 kg / cm²

• Operating Water Temperature up

   to 50 °C

• Pipe Size

  25 mm x 25 mm

• Suitable For Single

   Phase supply

• Gross Weight

  6.7 kg

• Packaging Dimensions

  290 mm x 215 mm x 260 mm

• Direction of Rotating clockwise

   when viewed from fan cover side

• Dynamically Balanced Rotor Yes

• Motor Body High

   quality extruded aluminum

• Motor Speed

  2850 Revolution per minute

• Motor Stator Low

   watt loss stamping

• Frequency

  50 Hz

• Winding Type Copper

   winding

• Rated Frequency

  50 Hz

• Maximum Discharge

  1900 L / hour

• Application: Ideal for domestic household purpose for clear cold water

• Features: 1. CED coated cast iron hydraulics part for corrosion free performance
        2. In built thermal overload protector and class F motor insulation

• Operating Voltage Range: 180 V - 260 V

• Warranty: 1 Year
