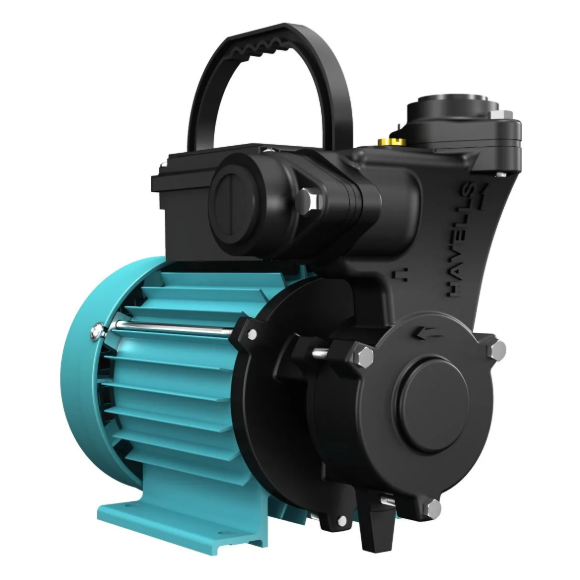

HAVELLS ZINNIA1 Plus AL 0.75 kW (1.0 HP)

Technical Specifications

• Manufactured By

  Havells India Ltd.

• Country Of Origin

  India

• Net Contents

  1 N Pump set, 1 N Instruction Manual, 1 N Suction Strainer.

• Applications

  Apartments, Bungalows, Farm-Houses, Building Construction, Gardening, Fountains, Overhead Storage Tanks, Pressure Booster Systems, Hotels & Hospitals

• Maximum Head

  34 m

• Maximum Working Pressure

  3.4 kg / cm²

• Operating Water Temperature

  up to 50 °C

• Pipe Size

  25 mm x 25 mm

• Suitable For

  Single Phase supply

• Gross Weight

  8.4 kg

• Packaging Dimensions

  305 mm x 203 mm x 269 mm

• Direction of Rotating clockwise

   when viewed from fan cover side

• Dynamically Balanced Rotor Yes

Motor Body High

•  quality extruded aluminum

• Motor Speed

  2800 Revolution per minute

• Motor Stator Low

   watt loss stamping

• Frequency

  50 Hz

• Winding Type

  Aluminum winding

• Rated Frequency

  50 Hz

• Maximum Discharge

  2700 L / hour
